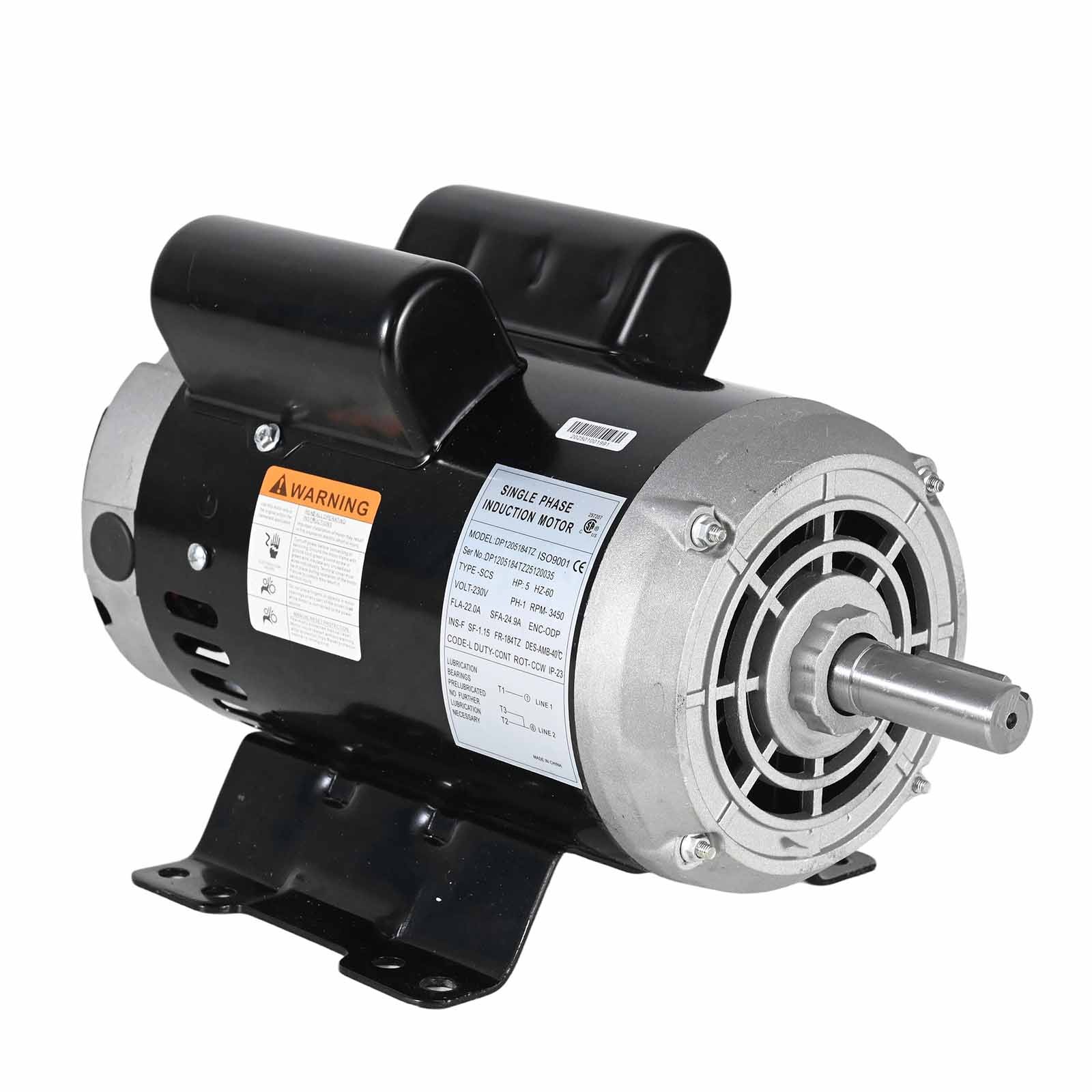

5hp Air Compressor

Note Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation. When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.   OE Number 56283138 23378805 23220064 54421193 Specifications Power 5 HP
FLA 24.9
SFA 27.3
RPM: 3450
Frame: 184T
Shaft Size: 7/8" x 2 1/4" with Keyway
Shaft height: 4.5" (Measured to Shaft Center)
Base: Flat Rigid Mounting Base
Voltage: 208-230V 60hz, 24.9 AMPS
Phase: Single Phase
Service Factor: 1.15
Insulation Class B
Ball Bearings
Open Drip Proof Enclosure
Manual Overload Protection Feature Brand new, high starting torque design for compressor duty applications. Overload protection with manual reset. Steel frame and base. Welded base. Capacitor start/capacitor run. Important NoteDelivery detailsTerms of salesPaymentContact us Important Note

Note: Any Free Shipping Promotion is Valid to the 48 contiguous states. for Alaska, Hawaii, Puerto Rico, Guam,Virgin Islands and Samoa, extra shipping fee will be charged.

1.Please be very careful to check our photos and OEM No. Before you purchase, make sure the photo showed is same as you wanted.thanks
2.Please offer us your correct address includes receiver,city,state,zip code,country in English language,and also mark down the phone number which could contact with you.thanks
3. If you want to buy more items or you are a wholesaler , just tell us and we will give you a comfortable price, Thanks!!!

Delivery details Handling time: 1 business day (Orders are not processed on weekends & holidays) Tracking information will be sent once item is shipped. Local pick-up is unavailable at the moment. Item is shipped to ebay address. Leaving correct address can minimize delay. Depending on the seller's address, items may be shipped from the eastern or western.  Terms of sales Return is acceptible within 60 days of delivery.
Return for replacement or money back is optional.
Returned items must be in brand new, unaltered and resalable condition.
Buyers pay return and replacement shipping cost.
Seller is not responsible for any customs duty/import tax, labor cost, expense in a dealer store, or damage due to wrong installation. Payment Please make sure your shipping address is correct and up-to-date.
Payment from bank account and all major credit cards will be accepted. Contact us PaymentDelivery detailsTerms of salesAbout usContact us
All messages will be answered within 1 business day. Brand GO Rated Load (HP) 5 Nominal Rated Input Voltage 230 V Service Factor 1.00 AC Frequency Rating 60 Hz Mounting Type Base-Mounted Enclosure Type DP (Drip-Proof) DC Stator/Winding Type N/A Reversible/Non-Reversible Non-Reversible Insulation Class F (Max 311°F) MPN 56283138, 23378805, 23220064, 54421193 Actual Rated Input Voltage 230V Base RPM 3450 Rated/Full-Load Torque 7.5 LB-FT UPC Does not apply Color Black Manufacturer Part Number 56283138, 23378805, 23220064, 54421193 Interchange Part Number 56283138, 23378805, 23220064, 54421193 Type Air Compressor Electric Motor Superseded Part Number 56283138, 23378805, 23220064, 54421193, Air Compressor Electric Motor Features Durable, Easy Installation Fitment Type Direct Replacement Manufacturer warranty 2 Years Items Included 1x Air Compressor Electric Motor
